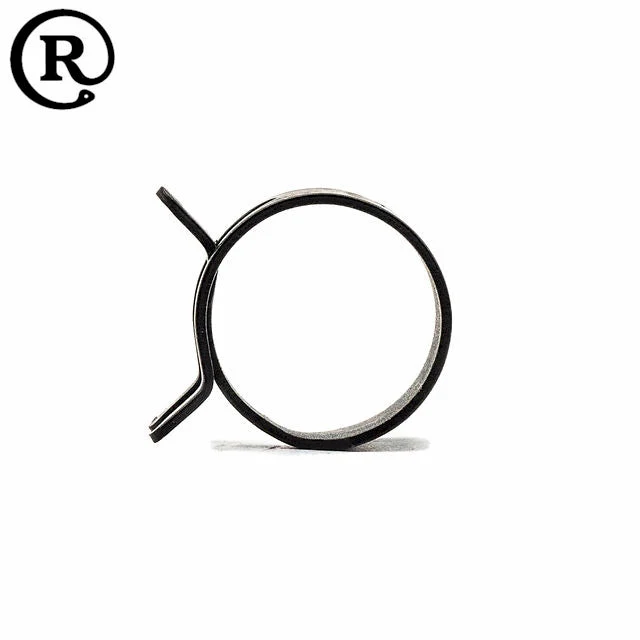

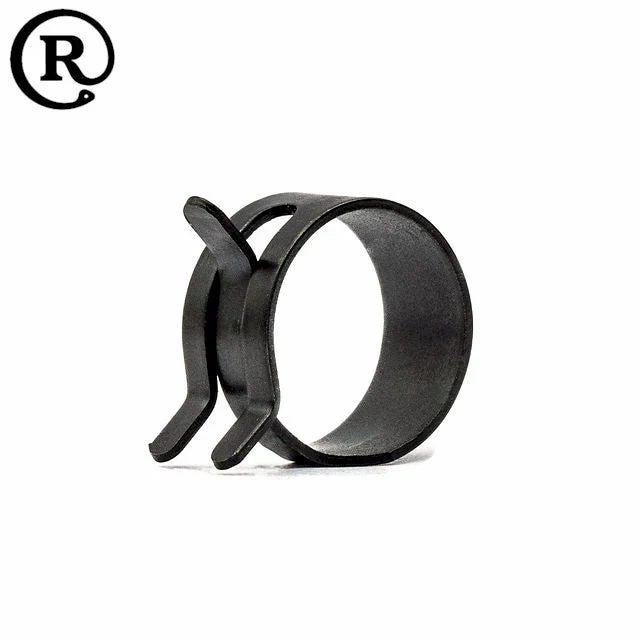

Spring Hose Clamp Light - Rotor - 15.8-18.4mm - Steel

Product image 1
Product image 2
Product image 3
Product image 4

Spring Hose Clamp Light - Rotor - 15.8-18.4mm - Steel

Description

Rotor Spring Band Clamps Light are self-tensioning sealing components, which ensure a leak-free sealing of hose/spigot joints. Utilizing austempered, high-tensile chrome-vanadium spring steel, the final product indicates great flexibility and strength, ensuring a reliable, leak-proof connection of a hose to a fitting. Once the Rotor Hose clamp is installed on the hose joint, there will not be any need to re-torque or re-adjust the clamp over time (compared to a typical screw type clamp).

Downloads

Product Specifications

  • Diameter Range (A) mm15.8 - 18.4
  • Diameter Range (A) inch0.62 - 0.72
  • Band Width (B) mm - inch7.9 - 0.31
  • Band Thickness (C) mm - inch0.73 - 0.030
  • Finish Phosphate, Mechanical Zinc Plate
  • Material SAE 1060-1090 Spring Steel, Austempered
  • Brand CTL
  • Manufactured byRotor Clip Inc.
  • Hazardous Goods No
  • RoHS Compliant Yes

Features

  • Self Tightening and Sealing
  • Almost constant clamping force
  • Adapt to changing characteristics of Hose
  • Minimal Leak Path
$0.19
Spring Hose Clamp Light - Rotor - 15.8-18.4mm - Steel—
$0.19

Product Information

Shipping & Returns

Description

Description

Rotor Spring Band Clamps Light are self-tensioning sealing components, which ensure a leak-free sealing of hose/spigot joints. Utilizing austempered, high-tensile chrome-vanadium spring steel, the final product indicates great flexibility and strength, ensuring a reliable, leak-proof connection of a hose to a fitting. Once the Rotor Hose clamp is installed on the hose joint, there will not be any need to re-torque or re-adjust the clamp over time (compared to a typical screw type clamp).

Downloads

Product Specifications

  • Diameter Range (A) mm15.8 - 18.4
  • Diameter Range (A) inch0.62 - 0.72
  • Band Width (B) mm - inch7.9 - 0.31
  • Band Thickness (C) mm - inch0.73 - 0.030
  • Finish Phosphate, Mechanical Zinc Plate
  • Material SAE 1060-1090 Spring Steel, Austempered
  • Brand CTL
  • Manufactured byRotor Clip Inc.
  • Hazardous Goods No
  • RoHS Compliant Yes

Features

  • Self Tightening and Sealing
  • Almost constant clamping force
  • Adapt to changing characteristics of Hose
  • Minimal Leak Path
