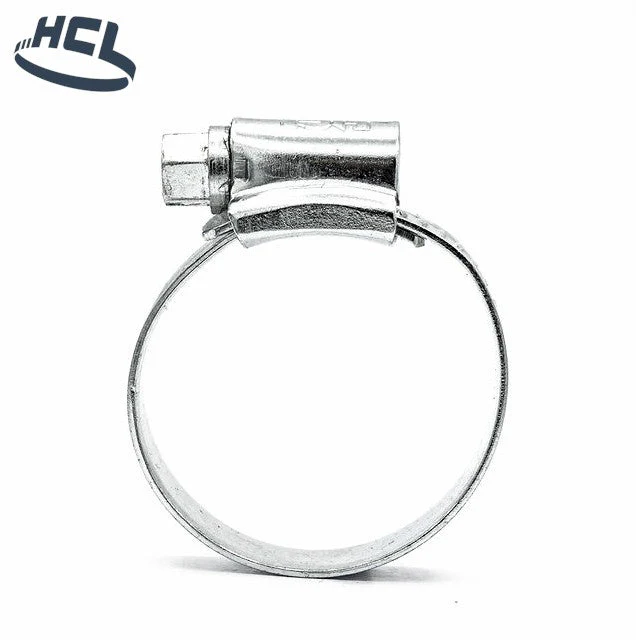

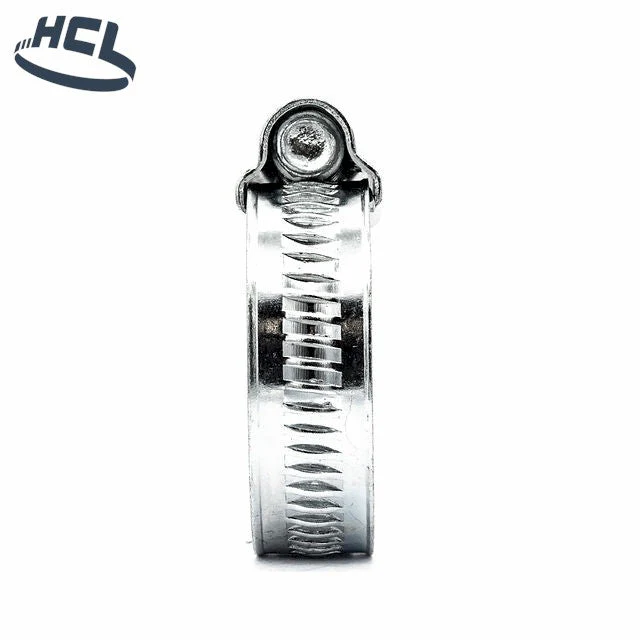

HCL Worm Drive Hose Clamp - 13-20mm - Zinc Plated Steel
WD-BS-00-SW
Description
HCL supply a budget range of British Style Zinc Plated Worm Drive Clamps. These clamps are manufactured using a Spot Weld technique. * The maximum application pressure can vary depending on the type of hose used and the geometry of the coupling.
Downloads
Product Specifications
- Diameter Range (A) mm13.0 - 20.0
- Diameter Range (A) inch0.51 - 0.75
- Band Width (B) mm - inch9.7 - 0.38
- Band Thickness (C) mm - inch0.8 - 0.03
- Screw mm A/F7.0
- Band/Housing Material W1 Mild Zinc Plated Steel
- Screw Material W1 Mild Zinc Plated Steel
- BrandHCL
- Hazardous Goods No
- RoHS Compliant Yes
Features
- British Style design
- Low Cost
$0.20
Original: $0.57
-65%HCL Worm Drive Hose Clamp - 13-20mm - Zinc Plated Steel—
$0.57
$0.20Product Information
